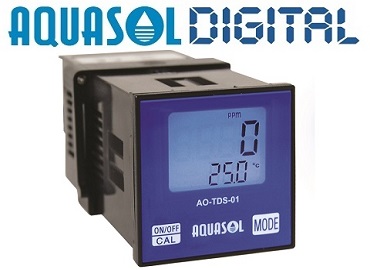

Online TDS/ Conductivity Meter
Code : AO-TDS-01
Range : 0 to 13.00 PPT , 0 to 20 mS/cm, 0 to 90 Deg C
Category : Online Meters
Price(Rs) : Get Quote
Monitoring of TDS / Conductivity is commonly required in a wide variety of industries ranging from water, chemical, pharmaceutical, food processing etc. So our online range of meters helps to monitor the process TDS / Conductivity/Temperature on continuous basis. These reliable, accurate and robust meters are designed with a compact housing which fits in standard industry panel with 1/16 DIN fitting. Also these meters can be easly calibrated and can display multiple parameters at the same time.
Specifications :
| Parameter | TDS | Conductivity | Temperature | ||||
| Model No | AO-TDS-01 | ||||||
| Range | 0 – 1300 ppm | 0 to 2000 μS/cm | 0 to 90 Deg C | ||||
| 1.30 to 13.00 ppt | 2.0 to 20 mS/cm | ||||||
| Accuracy | ±2% of FS | ±2% of FS | ±0.2+ 1 Digit | ||||
| Resolution | 1ppm / 0.01ppt | 1μS / 0.01mS | 0.1 Deg C | ||||
| Panel Fitting | 1/16 DIN , (1.77″ x 1.77″) , (45mm x 45mm) / Depth 4.3″ (110mm) | ||||||
| Power | 9V DC (2 Pin 230VAC Adaper provided) | ||||||
| Probe Connection | BNC Connection for Probe & 3.5mm for Temperature Sensor | ||||||
| Dimensions | 45mm x 45mm x 110mm | ||||||
| Meter Weight | 75g | ||||||
