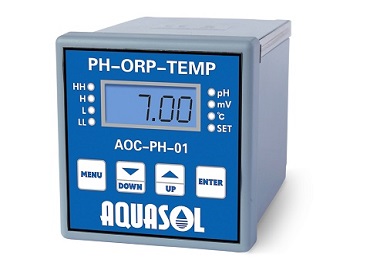

Online PH/ORP Controller

Code : AOC-PH-01


Range : 0 to 14.00 pH, (-)2000 to (+)2000 mV, 0 to 100 Deg C


Category : Online Controllers


Price(Rs) : Get Quote



PH / ORP are the primary controlling parameters for any process used in a wide variety of industries ranging from water, chemical, pharmaceutical, food processing etc. Our online controllers are used to monitors these process parameters continuously and helps to take corrective action with its relay & current outputs. These reliable, accurate and robust meters are designed with a compact housing which fits in standard industry panel. Also these meters can be easily calibrated and can display multiple parameters at the same time.


Features:


  • Microprocessor based for fast and accurate measurements.
  • Weatherproof Case and Compact Design (IP 54)
  • Programmable Relay & 4 to 20mA Outputs with user defined Hysteresis
  • Programmable High & Low Alarm functions
  • 1/4 DIN Fitting on the Standard Industry Panel
  • Galvanic separation between Input , Output & Supply
  • Auto Buffer Adjustment with Automatic Temperature Compensation
  • Large Backlight LCD Display

Parameter PH , ORP , Temperature
Model AOC-PH-01
Range 0 to 14.00 PH, 0 to 2000 mv, 0 to 100 Deg C
Display LCD
Resolution 0.01 PH, ± 1 mv, 0.1 Deg C
Accuracy ± 1% FS, 0.2 Deg C
Linearity ± 0.1% of Range
Repeatability ± 0.1% of Range
Temperature Compensation Automatic / Manual (0 to 100 Deg C)
Output Relay 2 Programmable Relay Outputs (250V/10A)
With User Defined Hysteresis Adjustments
Current Output Isolated DC 4 to 20 mA Output
Max Load : 750 Ώ
Alarm Programmable High & Low Alarm
Power Supply  220 VAC @ 50 Hz
Enclosure Rating IP 54
Dimensions 96 × 96 × 110 mm
Mounting Details 1/4 DIN Panel Mount (Cut out Size : 92 x 92 mm)
Weight 500 Gms
